Hankison HPRN Series Non-Cycling Refrigerated Air Dryer

Name: Hankison HPRN Series Non-Cycling Refrigerated Air Dryer
Price: 945.0 USD
Availability: InStock

Space-saving dryer with a 5 to 1200 SCFM flow rate, 38°F (3°C) pressure dew point, and air cooled after cooler.

View 1 Product Review

Hankison HPRN Series Non-Cycling Refrigerated Air Dryer — Hankison HPRN Series 75 - 600 CFM Non-Cycling Refrigerated Air Dryer

Hankison HPRN Series 75 - 600 CFM Non-Cycling Refrigerated Air Dryer
Hankison HPR Series 5 to 50 SCFM Non-Cycling Refrigerated Air Dryer
Hankison HPRN Series 800 -1200 Non-Cycling Refrigerated Air Dryer

Select your options below…

Capacity

Connections

Voltage

Filtration Package

Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.

List Price: $1,350.00

$945.00

Configured Part No. HPR5-10

Manufacturer has 3 in stock. Additional processing time may apply.

Available Payment Methods

Request Quick Quote

View Company Reviews

Highlights...

By Hankison
FREE Shipping on orders of $1,000 or more
Factory Warranty and Support Available
Local Service Available on All Brands

Features

38°F (3°C) pressure dew point
5 to 1200 SCFM capacity
120˚F max temperature
232 or 250psig max pressure
Voltage
- 115/1/60
- 460/3/60
R-134a or R-407C refrigerant
CSA approval
ISO 8573-1 Class 4 to Class 5

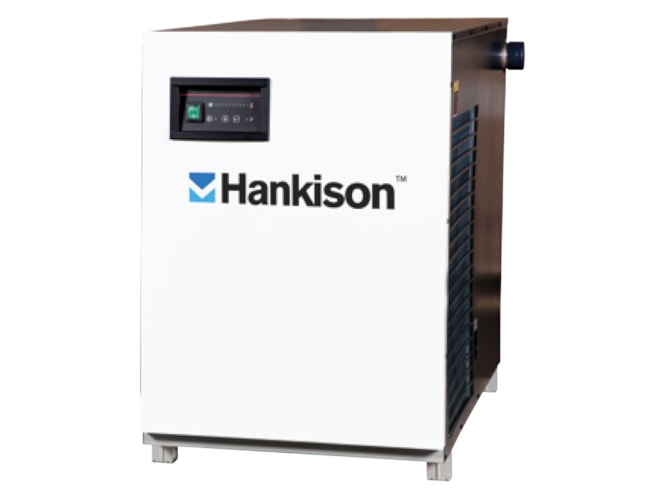

The Hankison HPRN Series non-cycling refrigerated air dryer is space-saving and designed to keep air systems at a dry 38°F (3°C) pressure dew point. The HPRN Series 5 to 15 SCFM models feature a pneumatically operated float drain and lighted on/off switch, while the 25 to 50 SCFM models come with an electronic drain valve, lighted on/off switch, and dew point temperature indicator. The static condenser design provides quiet operation. Dryers up to 50 SCFM have smooth bore, copper tube-on-tube heat exchangers that deliver low pressure dew point performance and a centrifugal separator that efficiently captures liquid condensate at varying inlet loads.

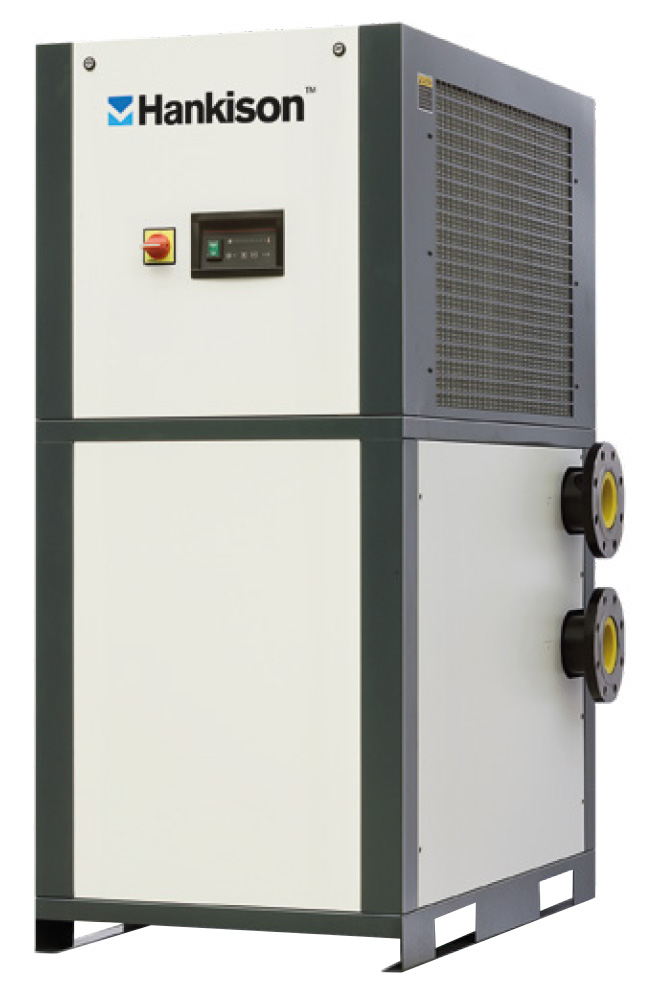

The Hankison Series 75 to 1200 SCFM models feature stainless steel, cross flow heat exchangers to optimize heat transfer and smooth, non-fouling channels to promote low pressure drop. The dryers have a dew point temperature display indicator to monitor inlet load conditions, timed electric condensate drain, panel mounted drain timer control, and a Y-strainer to protect the valve from rust and scale. Herringbone geometry stamped into the stainless steel plates creates turbulent flow for a self-cleaning effect. An increased calming zone and integral demister and separator captures liquid condensate and solid particles, which effectively removes condensate from 0 to 100% flow conditions without moisture carryover.

Spec Sheets

Hankison HPRN Series Non-Cycling Refrigerated Air Dryer Datasheet (836 KB)

Reviews

Doing Its Job

Reviewed on 9/19/2019

Part Number: HPR15
We bought the dryer exclusively for a new silk screening machine that requires very dry air. So far so good with no moisture getting on to our sprayers. Happy with the purchase and Buddy in Sales was very helpful in making us comfortable that we were getting the right dryer for the application. Will recommend Compressor World to others.

- Ivan
