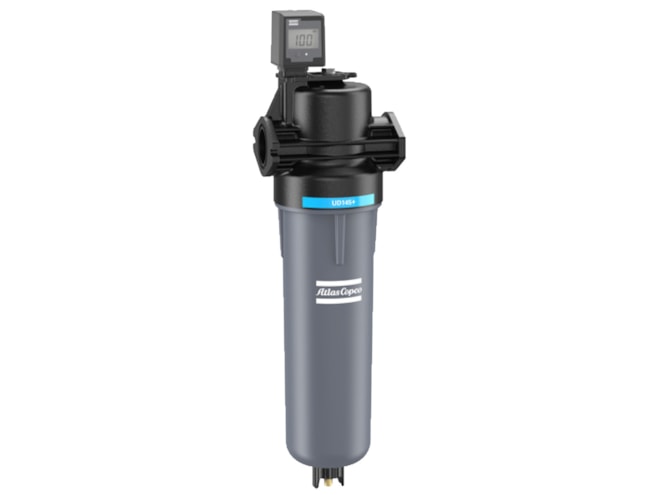

Atlas Copco UD+ Oil Coalescing Industrial Compressor Filter
Combines DD+ and PD+ steps for filtering oil aerosols and wet dust.
- By Atlas Copco
- FREE Shipping on orders of $1,000 or more
- Factory Warranty and Support Available
-
Manufacturer has some models in stock. View available part numbers.
- Local Service Available on All Brands
Overview
Features
- .0001 mg/m³ maximum oil carryover
- 3.19psi wet pressure drop
- 102psig reference pressure
- 232psig maximum pressure
- Element service after 8,000 operating hours or 1 year
- Precede with water separation
- ISO 8573-2:2018, ISO 12500-1:2007 test method
Description
The Atlas Copco UD+ Oil Coalescing Industrial Compressor Filter uses wrapped filtration technology to filter aerosols and solid particles under wet conditions from compressed air systems, which may arise from lubrication of the compressor element, intake air, and/or the compressor installation itself. The UD+ combines two filtration steps (DD+ and PD+) into one, helping to meet the quality requirements of diverse applications and save energy. The UD+ filter provides the same air purity as a DD+-PD+ filter train with a lower pressure drop. It is ideal for applications where space is at a premium, reducing environmental footprint, system complexity, and installation space.
The inPASS™ bypass option is also available for all models. The built-in bypass can be used to reroute the air during filter service to ensure an uninterrupted air flow, allowing for service during working hours, reduced maintenance time as the air system will not need to be shut down, lower leakage risk, and elimination of a need for an external piping bypass.
Documents
In Stock
Manufacturer Stock
| Part Number | Price | Available | |
|---|---|---|---|
|
8102372404 |
$692.00 | 24 in stock | |
|
8102372402 |
$452.00 | 17 in stock | |
|
8102372412 |
$1,789.00 | 11 in stock | |
|
8102372416 |
$2,429.00 | 8 in stock | |
|
8102372460 |
$1,623.00 | 7 in stock | |
|
8102372462 |
$2,171.00 | 6 in stock | |
|
8102372408 |
$965.00 | 5 in stock | |
|
8102372464 |
$2,625.00 | 5 in stock | |
|
8102372454 |
$890.00 | 4 in stock | |
|
8102372410 |
$1,366.00 | 3 in stock | |
|
8102372456 |
$1,042.00 | 2 in stock | |
|
8102372466 |
$2,869.00 | 2 in stock | |
|
8102372472 |
$3,835.00 | 2 in stock | |
|
8102372422 |
$3,252.00 | 1 in stock | |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1 to 2 days". Click here to select options
