Overview

Features

  • 2 to 30 HP models available
  • 4.1 to 101.8 CFM (depending on model)
  • ASME coded receiver (tank mounted models only)
    • California code compliant receivers
  • Start/stop pressure switch control
  • NEMA 1 control panel
  • ODP NEMA 1,760rpm electric motor
  • 10 micron intake filter
  • Enclosed belt guard
  • Available voltages:
    • 1-phase: 115/208-230
    • 3-phase: 208/230/460
  • Additional options:
    • Low oil level monitor
    • Vibration isolators
    • Dual control
    • Air cooled aftercooler

Description

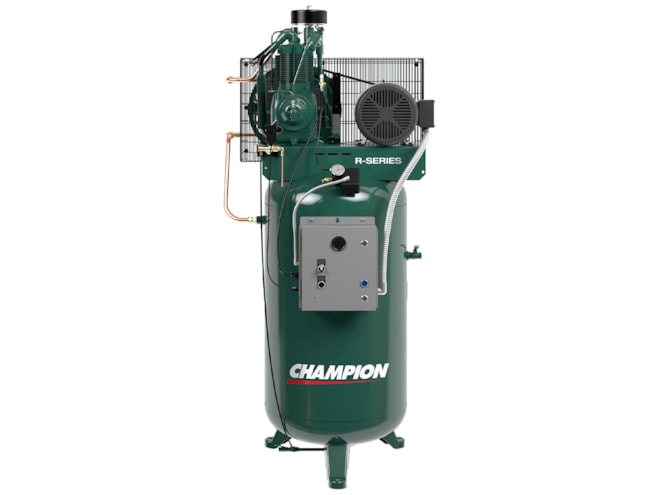

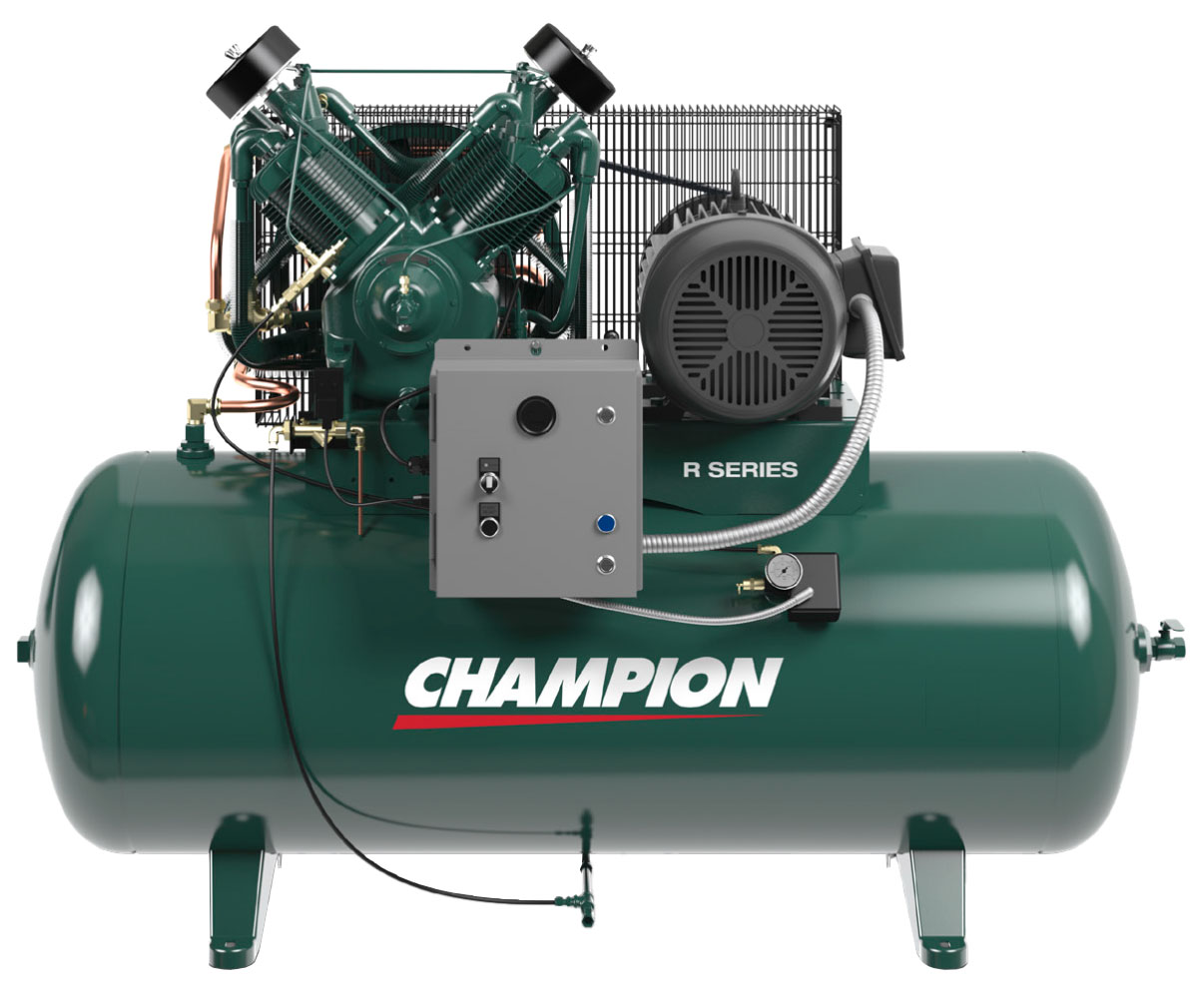

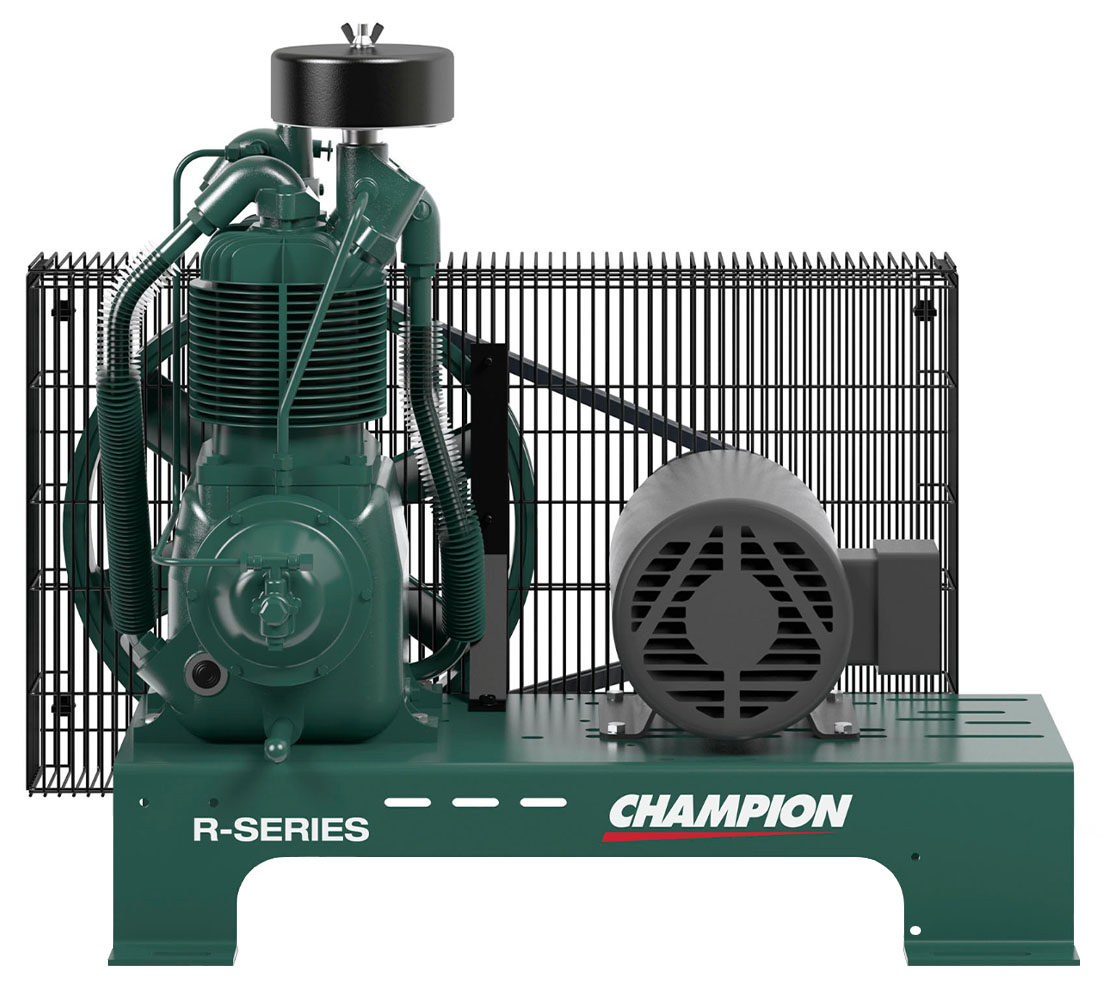

The Champion R-Series simplex two stage piston air compressor is available as a base mounted model or as a tank mounted model with tank sizes ranging from 30 gallons up to 240 gallons. The multi-finned cylinders enable cooler operating temperatures while the integral cylinder/head design allows for a low maintenace and trouble-free design. The two high efficient lap joint compression rings with bi-directional seal provide efficient air delivery while the aluminum alloy first-stage piston and cast iron second-stage piston ensure proper balance of the system. The centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
