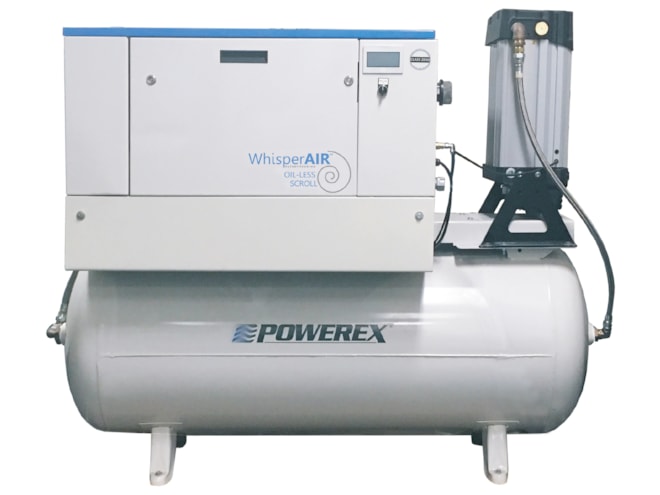

Powerex Oilfree Scroll Tank Mounted Enclosed Compressor
SES, STES & STED Series, enclosed units with optional mounted air dryers, simplex motor, oilless construction.
Overview
Features
- 116psig standard pressure maximum (145psig high pressure option available)
- 16°F approach temperature
- Fits through a standard 36in door
- Adjustable set points
- Electric automatic tank drain
- ISO 8573-1:2010 Class Zero certified
- UL508A control panel
Description
The Powerex Scroll Tank Mounted Enclosed Compressor is designed to provide clean, dry air for industrial applications where the quality of the compressed air is critical. The compressors are belt driven, oilless constructed, rotary scroll single stage, and air-cooled with absolutely no oil needed for operation. The rotary design does not require any inlet or exhaust valves and is rated for 100% continuous duty.
The tip seals are of a composite PTFE material and rated for 8,000 hours operation for standard units; 4,000 hours operation for high pressure units. The bearings are accessible for service.
Each compressor pump is provided with an electric drive motor, discharge check valve, an air-cooled after-cooler, and a high discharge temperature shut down switch. Auxiliary cooling fans operate from 120-volt pwoer provided by the transformer included in the system controls.
Applications
- Laboratory
- Food/beverage processing and packaging
- Sterilizers
- Gas generation
- Environmental
