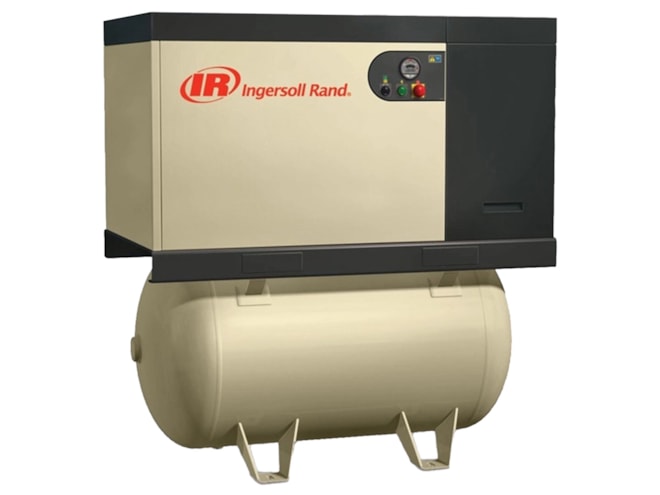

Ingersoll Rand R-Series Variable Speed Rotary Screw Air Compressor

7.5 to 15 hp, air-cooled compressor with tri-voltage 3-phase premium efficiency motor and all-in-one airend.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $13,888.99
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Danfoss variable speed drive (VSD)
  • Baseplate or tank mounted
    • 80 or 120 gallon tanks available
  • Xe-70M controller standard
  • Standard package pre-filters
  • Manual load/unload control
  • 2.1in monochrome display
  • Quiet enclosure down to 69dBA
  • Optional Total Air System (TAS):
    • General purpose and high-efficiency filters
    • Integrated dryer
    • 3-in-1 heat exchanger

The Ingersoll Rand R-Series variable speed rotary screw air compressor delivers optimum performance and reliablity in a compact package. The Danfoss variable speed drive eliminates overheating and related component failures while the V-Shield technology uses premium PTFE hoses on all oil-carrying lines as well as O-ring face seal connections, reducing the risk of leaks and increasing hose lifespan.

The included Xe-70M controller features 2 RS-485 communication ports, start/stop control, auto restart, blower control, dryer control, and the ability to sequence of up to 4 compressors.

The R-Series Total Air System (TAS) option provides clean, dry air in a single package. These complete compressor and dryer systems come with integrated controls, water separators, drain ports, 3-in-1 heat exchanger, and filters. The onboard dryer controller allows for adjustment of critical operating parameters and is integrated so that the dryer cycling is controlled by the compressor operation.
