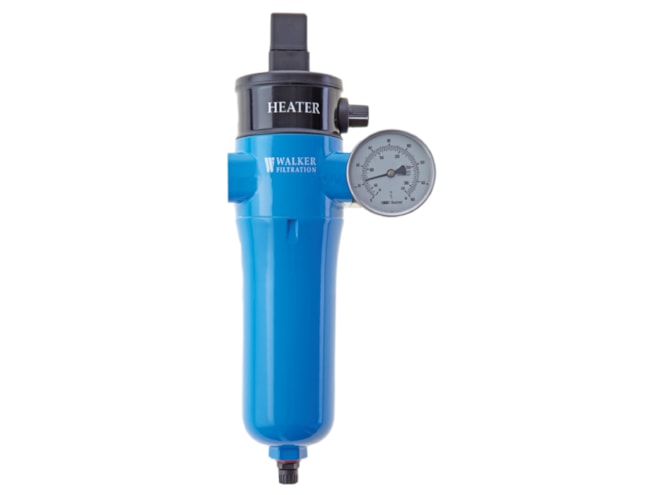

Walker Filtration A-Range Series Heater and Filter Package

27 or 54 SCFM, available with optional bi-metallic thermometer and pre-filter.

Select your options below…

Need help? Talk to an expert.
{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $1,462.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 27 or 54 SCFM
  • 232 PSIG max pressure rating
  • 68°F to 248°F controlled output range
  • -4°F minimum inlet temperature
  • Semi-automatic Drain Valve (SDV25) standard
    • Float Operated Automatic Drain Valve (ADVS16) fitted to pre-filter models
  • 3/8" NPT (27 SCFM) and 1/2" NPT (54 SCFM) connections
  • Optional bi-metallic thermometer
  • Optional pre-filter

The Walker Filtration A-Range Series Heater and Filter Package is designed to ensure variable compressed air temperature suitable for use in industrial or breathing air applications, allowing air to be filtered and temperature controlled between 68°F and 248°F.

The A-Range Series Heater uses an open wound heating coil and a high accuracy output temperature sensing device. This combination of fast responding heater and sensor allows the unit to adjust quickly to any variations in flow rate or line pressure, without deviation in the output temperature.
