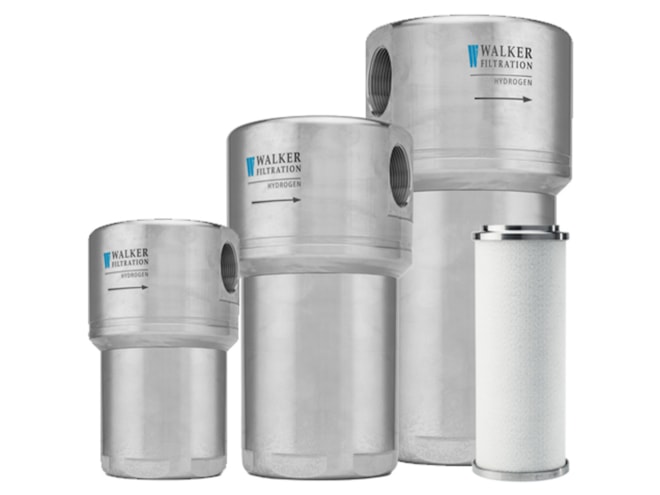

Walker Filtration Hydrogen Gas Filter
725, 1450, and 5075 PSIG models, 159 to 22189 SCFM, designed to meet the requirements of Hydrogen applications.

Overview
Features
- 725 PSIG Models:
- 159 to 6298 SCFM
- 1450 PSIG Models:
- 315 to 12478 SCFM
- 5075 PSIG Models:
- 1089 to 22189 SCFM
- 1/4" to 2" NPT connections depending on model selected
- Stainless steel construction
- PED 2014/68/EU Compliant for Group 1 Gases
- 2 element grades available:
- RX5: 5 micron
- RX1: 1 micron
Description
The Walker Filtration Hydrogen Gas Filter provides a comprehensive, high efficiency solution to meet the stringent requirements of Hydrogen applications. Available in 1 micron and 5 micron filtration grades, the hydrogen gas filter provides low pressure drop and prevents particle entry in all pressure system components. Available in a wide range of flows (159 to 22189 SCFM) and pressures (725, 1450, and 5075 PSIG) that accommodate the various stages of your system.
