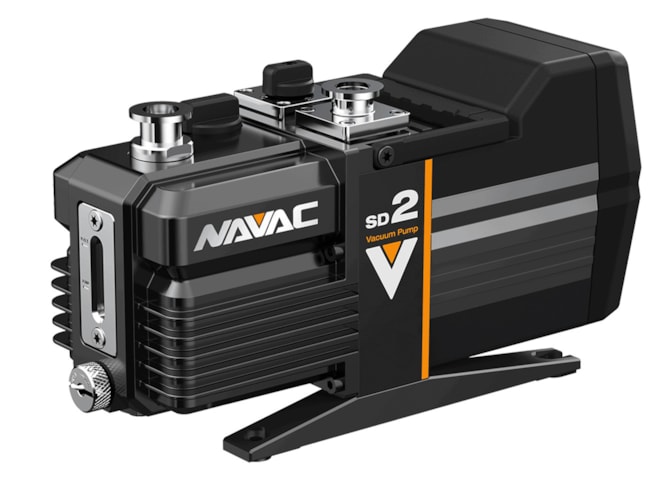

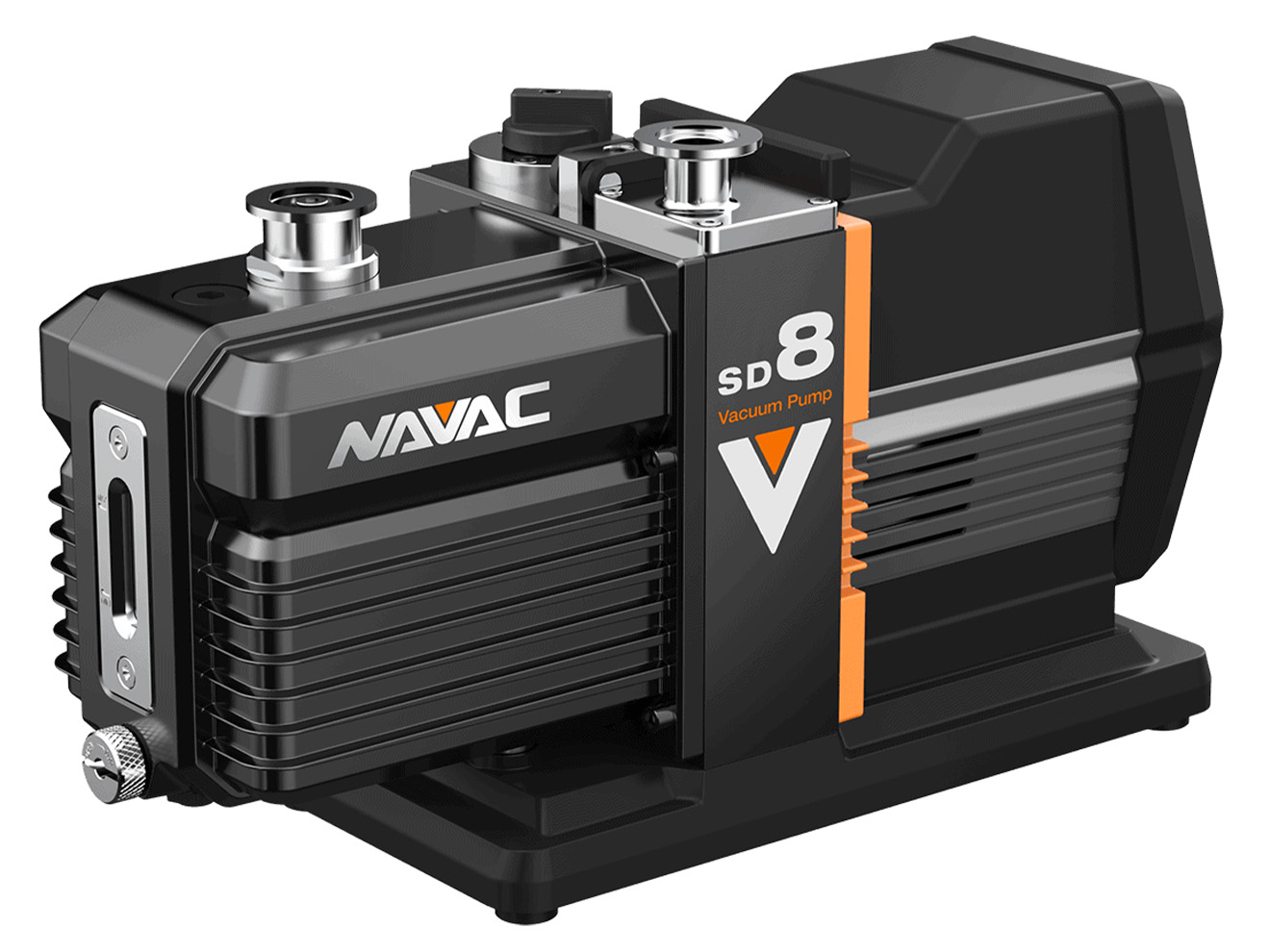

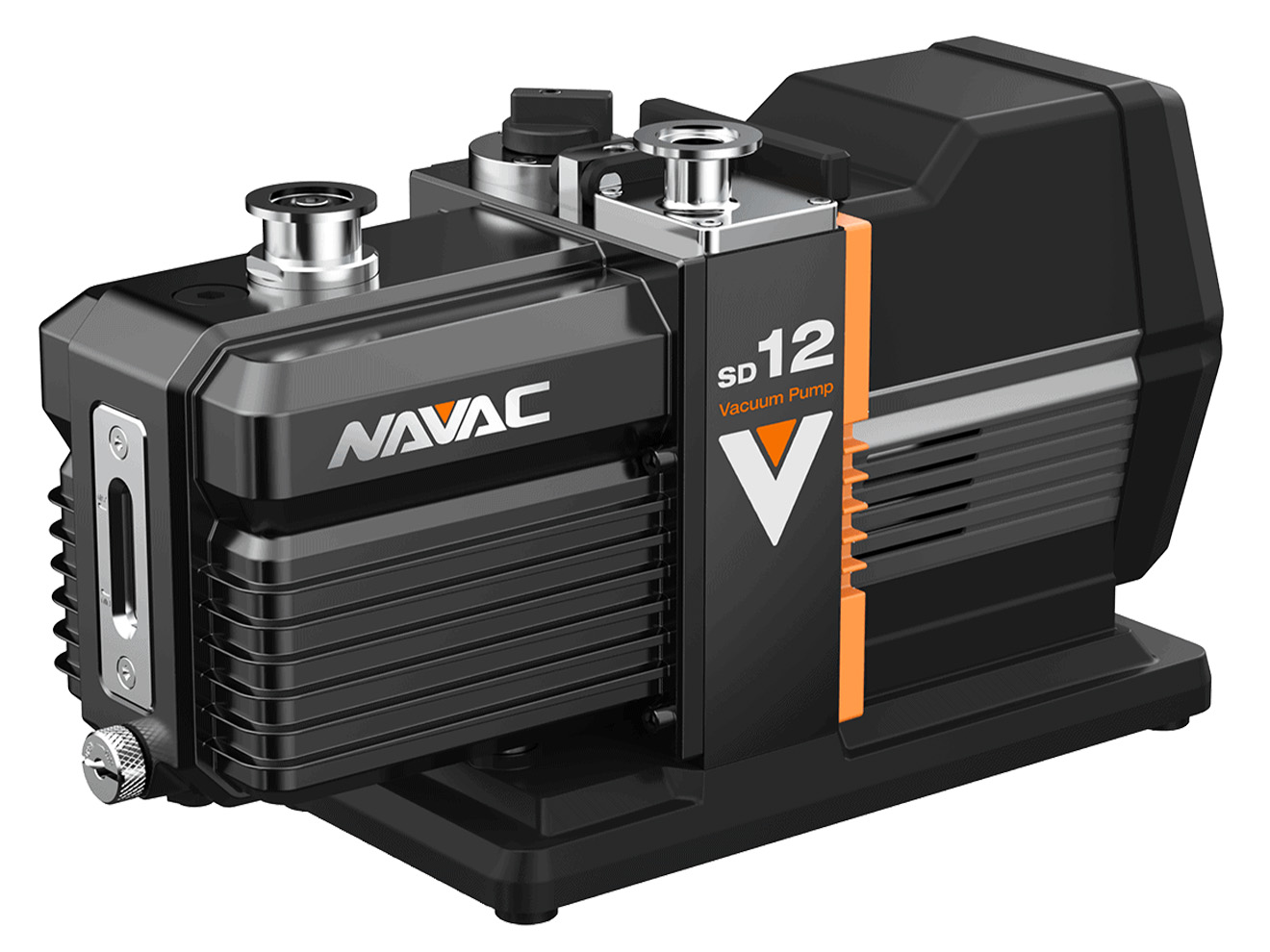

NAVAC ShieldDrive Series Oil-Sealed Rotary Vane Vacuum Pump

Dual-stage vacuum pump employs static sealing with mechanical shield and magnetic coupling design for protection against oil migration.

Select your options below…

Need help? Talk to an expert.
{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $2,705.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Pumping Speed:
    • 1.5 to 5.9 CFM
  • Ultimate Total Pressure without Gas Ballast: 3.7x10-3 Torr
  • Ultimate Total Pressure with Gas Ballast: 2.2x10-2 Torr
  • Brushless DC Technology
  • Anti-suck back design
  • Eco Mode
  • Adjustable gas ballast
  • Proprietary mineral oil included
  • 115/1/60 voltage

The NAVAC ShieldDrive Series Oil-Sealed Rotary Vane Vacuum Pump is a dual-stage vacuum pump with a permanent magnet motor optimized for efficiency and leak-free operation. The ShieldDrive Series employs static sealing with mechanical shield and magnetic coupling designs, offering complete protection against oil migration. Ideal for laboratory use, its robust design guarantees leak-free performance in critical applications.
