Champion R-Series AirStation Two Stage Piston Air Compressor
2 to 15 HP splash lubricated air compressor package, non cycling refrigerated air dryer and air cooled aftercooler included.

Overview
Features
- 2 to 15 HP models available
- 4.1 to 48.7 ACFM
- Start/stop pressure switch control
- Mounted NEMA 1 Control Panel
- NEMA 4 option available
- Mounted XCNC Non Cycling Refrigerated Air Dryer included
- XCNC11 on HR2 to HR7 models
- XCNC32 on HR7F to HR15 models
- Mounted air cooled aftercooler included
- Intake Filter / Silencer
- X-Series Pre-filter
- 3-way Bypass Valve
- ASME coded receiver (80, 120, or 240 gallon available depending on selected HP)
- California code compliant receiver standard
- Massachusetts coded fittings option available
- Tank coating options available
Description

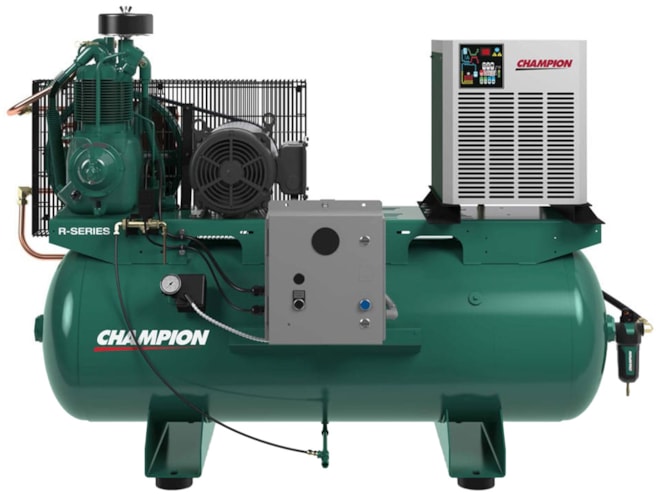

The Champion R-Series AirStation Two Stage Piston Air Compressor is a complete compressor system with a XCNC non cycling refrigerated air dryer and air cooled aftercooler, all mounted on an ASME coded receiver tank.
The multi-finned cylinders enable cooler operating temperatures while the integral cylinder/head design allows for a low maintenance and trouble-free design. The two highly efficient lap joint compression rings with bi-directional seal provide efficient air delivery while the aluminum alloy first-stage piston and cast iron second-stage piston ensure proper system balance. The centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
