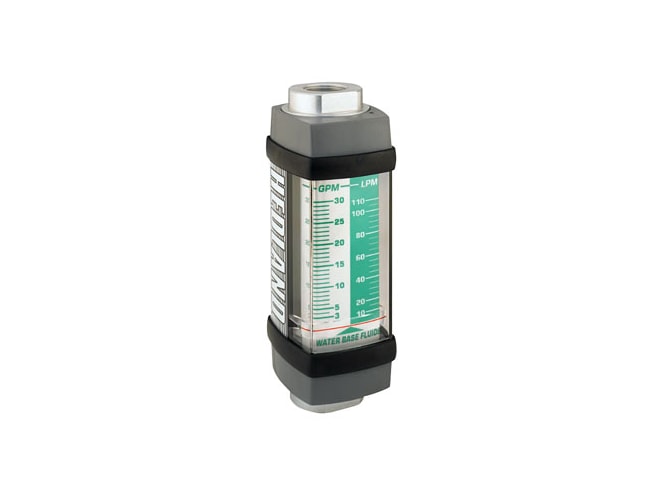

Hedland Flow Meter for Water-based Fluids

Variable area flow meter for water-based fluids and oil/water emulsions, temperatures up to 500°F.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $241.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 360° rotatable guard/scale
  • Easier-to-read linear scale
  • Relatively insensitive to shock and vibration
  • Good viscosity stability
  • Temperature range options:
    • Standard -20 to 240°F (-29 to 116°C)
    • High temperature up to 500°F (260°C)
  • ±2% full scale accuracy

The Hedland Flow Meter for Water-based Fluids is a low-cost and durable variable area flow meter. These in-line flow rate indicators are industrial-class and can be used with high temperature water-based fluids and emulsions. It features quality metal construction in aluminum, brass, or stainless steel and offers a choice of six port sizes ranging from 1/4" to 1-1/2".

This flow meter is suitable for applications with temperatures ranging from -20 to 400°F (continuous) and 400 to 500°F (intermittent). Stainless steel flow meters are pressure-rated for 6000 PSI (5000 PSI for 3/4" to 1-1/2" series) with a 3:1 safety factor. Aluminum and brass flow meters are pressure-rated for 3500 PSI with a 3:1 safety factor. Brass models are highly recommended for water systems or for systems where galvanic corrosion may be a concern.
