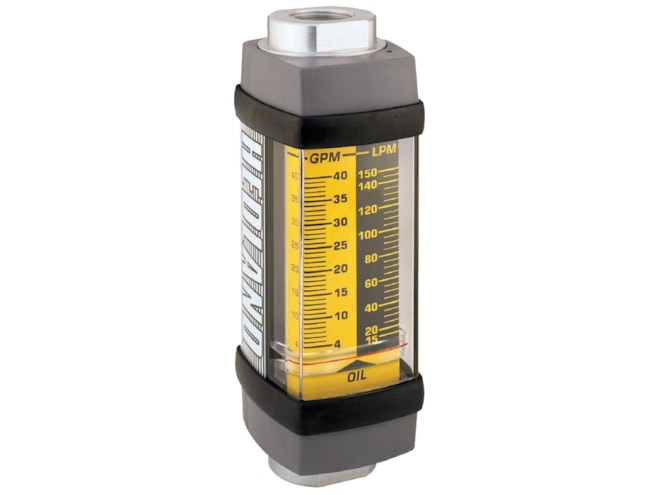

Hedland Petroleum Fluids Flow Meter

Variable area flow meter designed for petroleum fluids with temperatures up to 500°F.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $241.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Direct reading
  • 360° rotatable guard/scale
  • Easy-to-read linear scale
  • Temperature range options:
    • Standard -20 to 240°F (-29 to 116°C)
    • High temperature up to 500°F (260°C)
  • Accuracy ±2% full scale
  • Repeatability ±1%
  • Calibrated for 0.876 S.G.

The Hedland Petroleum Fluids Flow Meter is a durable and cost-effective variable area flow meter that is well-suited for petroleum and petroleum-based fluids. These flow meters can be used in applications where temperatures range from -20 to 400°F (continuous) and 400 to 500°F (intermittent).

These flow meters feature high-quality metal construction in aluminum, brass, or stainless steel. The aluminum and brass models of variable area flow meters are rated for operating pressures of up to 3500 PSI with a 3:1 safety factor. The stainless steel model is pressure rated for a maximum of 6000 PSI (5000 PSI for 3/4" to 1-1/2" series) with a 3:1 safety factor. There are seven port sizes available ranging from 1/4" to 3".
