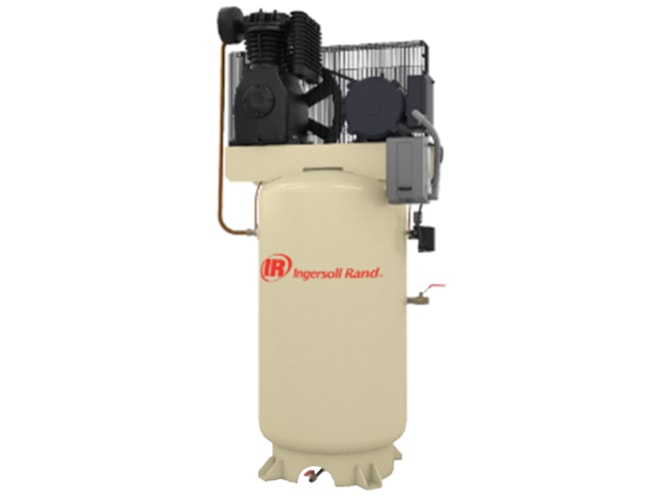

Ingersoll Rand Pressure Lubricated Piston Air Compressor

5 to 30 HP compressor, 19.1 to 99.3 CFM, designed for heavy-duty operation.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $3,609.99
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 5 to 30 HP models
    • 19.1 to 99.3 CFM
  • 175 PSI max pressure
  • Vertical or horizontal air receiver tank
    • 80, 120, and 240 gallon depending on HP selected
  • Magnetic Starter
  • NEMA 1 Electrics
  • Inlet Filter Standard Duty
  • Air Cooled Aftercooler (10 to 30 HP models)
  • Value and Premium packages available (see description tab for details)

NOTE: ALL Pumps ship dry from the factory and require Startup Kit(s).


Tech Specs

Ingersoll Rand Pressure Lubricated Piston Air Compressor Tech Specs

The Ingersoll Rand Pressure Lubricated Piston Air Compressor features cast-iron construction of the head, crankcase, cylinders, and deep-finned inner coolers providing superior performance even in the most demanding industrial environments. The slow-running compressor pump PRM reduces heat and extends bearing life to deliver long-lasting operation. The pressure lubrication technology delivers oil to the necessary components, minimizing friction and extending compressor life.

Packages Available:

Value Package:

  • ODP Motor
  • Magnetic Starter
  • AS&S Control
  • NEMA 1 Electrics
  • Inlet Filter Standard Duty
  • Air Cooled Aftercooler (on 10 to 30 HP models)
  • Centrifugal Unloader Assy (on 10 to 30 HP models)
  • Manual Tank Drain

Premium Package:

  • ODP Motor
  • Magnetic Starter
  • AS&S Control
  • NEMA 1 Electrics
  • Inlet Filter Standard Duty
  • Air Cooled Aftercooler (on 10 to 30 HP models)
  • Centrifugal Pressure Relief CPR Unloader (on 10 to 30 HP models)
  • Pneumatic Auto Drain
  • Low Oil Level Switch
