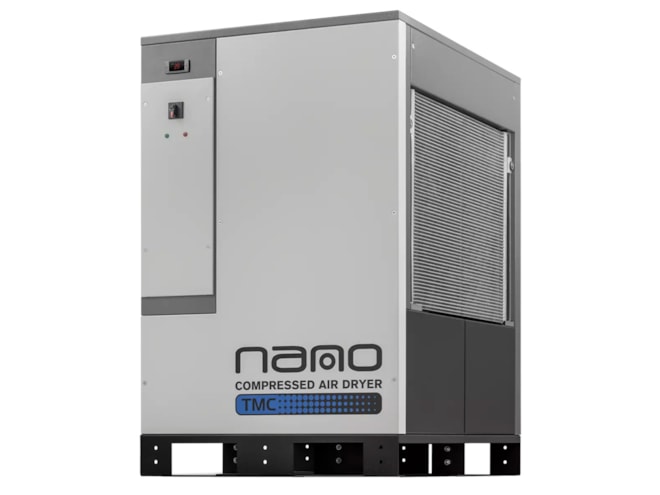

nano-purification solutions TMC Thermal Mass Cycling Refrigerated Air Dryer

30 to 635 SCFM, glycol thermal energy circuit, ISO 8573.1:2010 Class 5.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $2,810.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 30 to 635 SCFM
  • 210 PSIG max operating pressure
  • 140°F max inlet air temperature
  • 115°F max ambient temperature
  • ISO 8573.1:2010 Class 5

Tech Specs

nano-purification solutions TMC Thermal Mass Cycling Refrigerated Air Dryer Tech Specs

The nano-purification solutions TMC Thermal Mass Cycling Refrigerated Air Dryer utilizes a glycol thermal energy circuit to save energy and money by only running when needed to match the actual airflow. When the glycol thermal mass reaches a set temperature, the compressor stops or cycles off but continues to provide clean and dry compressed air, unlike direct expansion dryers which run continuously. The cold energy is stored in the glycol thermal mass, maintaining the dew point at the desired temperature. When the temperature of the thermal mass starts to rise, the refrigerant compressor cycles on.

Manufacturer Stock

Part Number Price Available
TMC 0105 N
Show Configuration
$5,690.00 11 in stock
TMC 0200 N
Show Configuration
$10,120.00 5 in stock
TMC 0320 N
Show Configuration
$13,700.00 5 in stock
TMC 0510 N
Show Configuration
$17,950.00 5 in stock
TMC 0030 N
Show Configuration
$2,810.00 3 in stock
TMC 0400 N
Show Configuration
$15,430.00 3 in stock
TMC 0170 N
Show Configuration
$8,120.00 2 in stock
TMC 0265 N
Show Configuration
$11,870.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
