Overview

Features

  • 460V-3Ph-60Hz standard voltage
  • -40 °F pressure dewpoint (-100 °F PDP optional)
  • Average purge is approx. 7% of rated flow
  • NEMA 4 enclosure
  • Oversized mufflers with pressure relief valves
  • Purelogic Control – standard on all PE dryers

Description

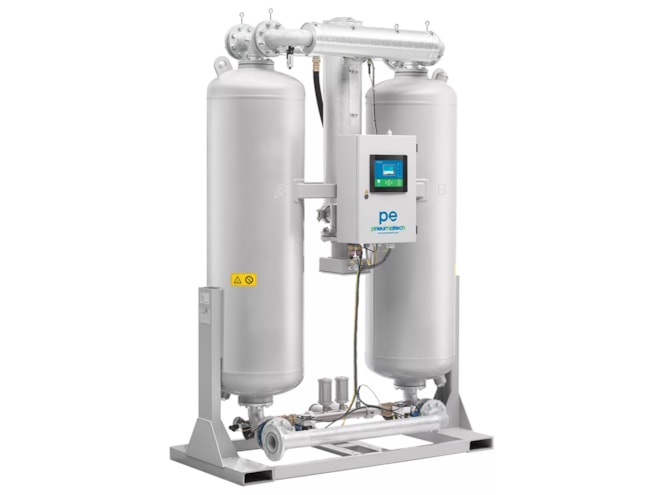

The Pneumatech PE Series Heated Dryer is equipped with an advanced control system as standard, offering an average purge of approximately 7% of the rated flow rate. The dryer is housed in a NEMA 4 enclosure and features ASME/CRN and NB registered vessels, ensuring compliance with industry standards. It is capable of delivering a -40°F pressure dew point (-100°F PDP optional), ensuring dry and high-quality compressed air.

The dryer is designed with oversized mufflers with pressure relief valves, providing noise reduction and safety features. It incorporates high-quality valves, including butterfly switching valves with Viton seat, cast iron body, and 304 stainless steel disc, as well as check valves with cast iron body, 316 stainless steel disc, and Viton seats. Additionally, full flow, soft seat pressure relief valves are integrated into the system for added protection.

The Purelogic Control system is a standard feature on all PE dryers, offering advanced functionality and monitoring capabilities. It includes remote start/stop, a web interface for read-only status monitoring, integral timers, user-adjustable PDP settings, auto restart after voltage failure, event history logging, service reminders, run/stop schedule timers, password security settings, and support for multiple languages. The control system is also compatible with ICONS, enabling seamless integration with existing monitoring and control systems.
