Overview

Features

  • -100 to +20°C dp range
  • Analog and digital outputs
    • 4-20mA or 0-20mA
    • RS-232
  • Dual user-programmable alarms
  • 85 to 265 VAC monitor power
  • 5/8 inch UNF process connection
  • 2m (6.56 ft.) length cable with mini-DIN mating socket included
  • IP66 (NEMA 4) sensor
  • IP65 (NEMA 12) monitor (front panel only)

What's in the Box

  • Traceable calibration certificate

Description

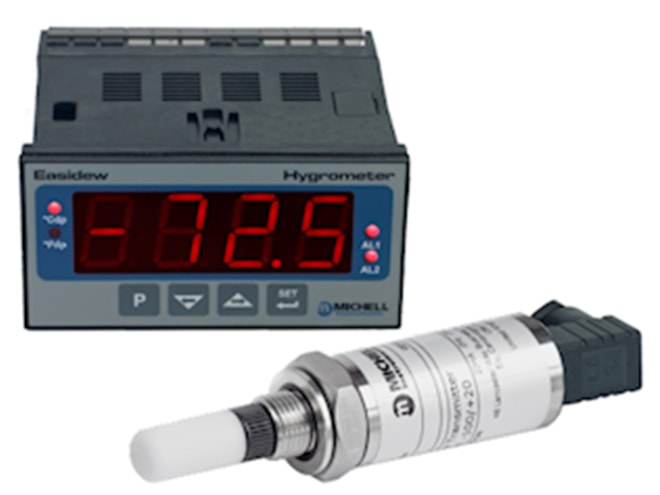

The Michell Instruments Easidew Online Dew Point Hygrometer offers a panel or bench mount hygrometer with a large digital display, analog and digital outputs, as well as a dual alarm feature that is programmable through the display. Utilizing the Michell Instruments Easidew transmitter, this hygrometer offers a measurement range of -100 to +20°C with ±2°C dp accuracy. The display  is housed in a 1/8 DIN case and features an IP65 (NEMA 12) rating on the front panel (only). Analog output options include 4 to 20mA or 0 to 20mA, and one RS-232 digital output.
