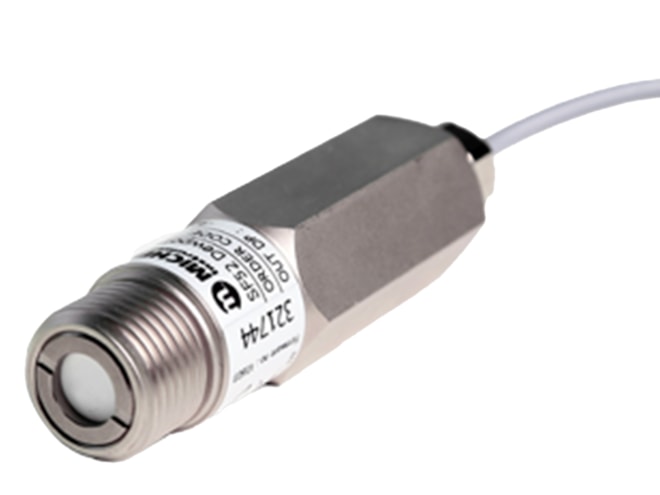

Michell Instruments SF52 Dew Point Transmitter

Cost-effective sensor designed for use in harsh industrial dryer applications, -40 to 60°C (-40 to 140°F) dp output.

Features

  • -40 to 60°C (-40 to 140°F) dp output
  • Accuracy ±2°C (±3.6°F)
  • 4–20mA (3-wire) signal output
  • Under-range/over-range on diagnostics
  • 1/2' NPT thread mount
  • IP65 construction

The Michell Instruments SF52 Dew Point Transmitter is a simple and cost-effective sensor designed for use in harsh industrial dryer applications where reliability and durability are required. A key feature of the unit is the recessed measuring element giving an extended sensor life cycle. The polymer-based sensor is calibrated on a high-volume traceable calibration system, providing OEM quantities of units on short deliveries, each with a 3-point calibration certificate.
