Overview

Features

  • Rated flow range: 75 to 2000 scfm
  • Up-flow aluminum air-cooled condenser
  • Stainless steel brazed plate 4-in-1 heat exchanger
    • Phase change material reservoir
  • Recirculating pump not required
  • Low resistance to flow
  • Maximum inlet temperature: 120°F
  • Maximum operating pressure: between 175 to 232psig, dependent on model selection
  • In accordance with ISO 7183 (Option A2)

Description

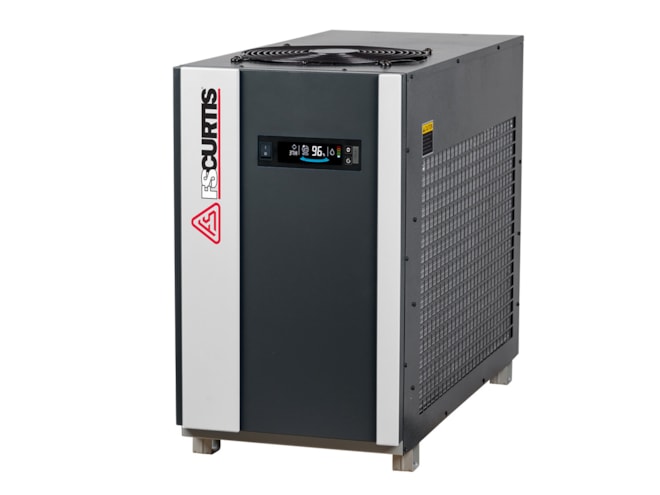

The FS-Curtis RES Series is a line of refrigerated compressed air dryers that offer an energy saving design and utilize an up-flow aluminum air-cooled condenser. The condensate drain lines terminate at discharge connections located at the side of the dryer and remove condensate without loss of compressed air. This line is designed with smooth, stainless steel surfaces, which promote low resistance to flow.

Additionally, these dryers feature a phase change material (PCM) located between the refrigeration and compressed air circuits, which enables it to melt or freeze at a constant temperature. The PCM will absorb heat from warm, moist compressed air without a significant rise in temperature. The PM stays colder for longer periods of time, cycling the refrigerant compressor less often and leading to a more energy saving operation.

In Stock

Manufacturer Stock

Part Number Price Available
FRES00075-1XXXFP
$3,915.52 1 in stock
FRES00150-1XXXFP
$5,866.44 1 in stock
FRES00200-4XXXXX
$7,182.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
