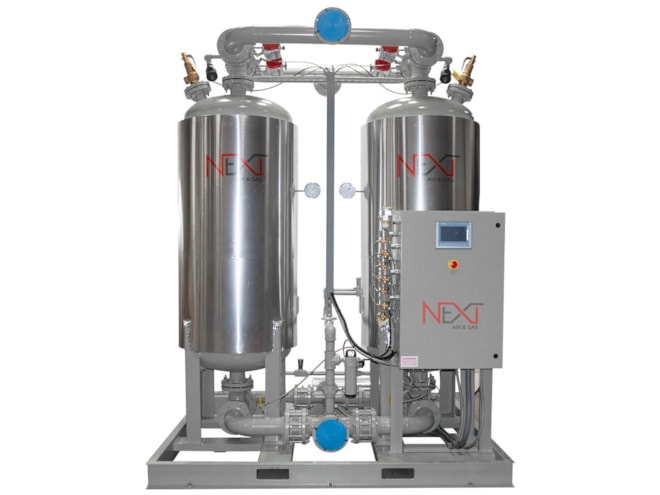

Clean Resources EHD Series External Heater Regenerative Desiccant Dryer

200 to 3500 CFM capacity dryer with fully pneumatic stainless steel actuator valves for independence of flow and pressure.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $22,096.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 200 to 3500 CFM capacities
  • PLC controller with color touch screen HMI standard
    • Optional PLC control with Remote Communication and Allen Bradley Color Touchscreen available
  • Valves:
    • Non-lubricated pneumatic piston valve (200 to 600 CFM)
    • Flow-activated, high-temperature check valve (800 CFM and up)
  • Fail-safe design in case of power failure
  • Stainless steel inlet/outlet diffuser
  • Dryer hour meter
  • Dryer service hour meter with alarm and reset
  • Dryer common alarm with history
  • Failure-to-switch alarm
  • 460/3/60 voltage standard
    • 575/3/60 and 400/3/50 options available

The Clean Resources EHD Series External Heater Regenerative Desiccant Dryer uses fully pneumatic stainless steel actuator valves rather than dated shuttle valves. This allows for independence of flow and pressure. The EHD Series is certified with ASME, CRN, UL, CUL certification.

The EHD utilizes an automatic system using a centrifugal blower and a high-efficiency heater that pulls in ambient air and passes it through the heater. This eliminates the need to use valuable compressed dry air for desiccant regeneration. Instead, more compressed air goes to plant operations. The hot air stream from the blower flows opposite to the drying flow direction. Hot air above 400°F regenerates the moisture-laden desiccant bed and strips it completely of moisture. The advanced control system monitors the dewpoint and adjusts the heating/regeneration accordingly, providing significant energy savings. The heater circuit is completely insulated, ensuring maximum heating efficiency.
