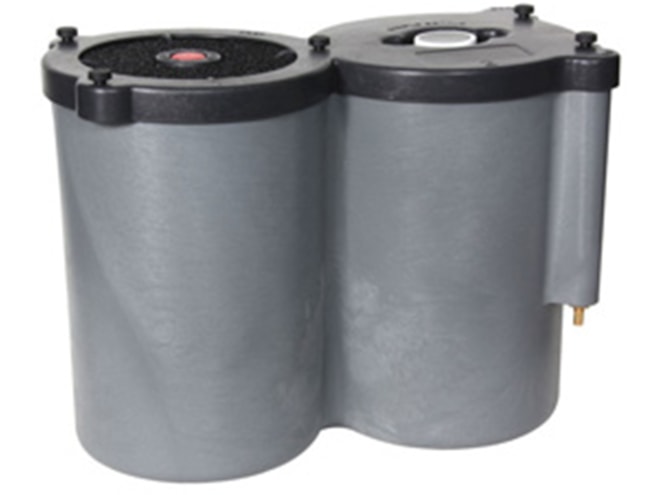

Midwest-Control Oil and Water Separator

Designed to remove oily condensate generated by lubricated compressed air systems, 125 to 600 SCFM.

Select your options below…

Need help? Talk to an expert.
{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $447.73
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 125 to 600 SCFM
  • 1/2" inlet and outlet
  • Meets Most Local Ordinances and Regulations
  • Protects the Environment
  • Compact Design
  • Can Be Used With All Condensate Drains

The Midwest-Control Oil and Water Separator is a two stage separator designed to reduce oil output to 10 ppm. Condensation flows through the first stage, equipped with a pre-filter poly bag that absorbs the oil like a magnet. The purified condensation then passes into the second stage, where the activated carbon bag reduces the remaining contaminants.
