Overview

Features

  • 90 to 3300 SCFM
  • -40°F / -100°F Pressure Dew Points
  • 115/1/60 voltage
  • Available options:
    • CRN
    • Mounted filter package
    • Failure to shift
    • DPC with DP Display (EMS)
    • 3 valve bypass
    • 4-20mA output
  • Mounted Pre and Post Filters
  • NEMA 4
  • Digital Controller
  • Robust Switching and Purge Valves
  • High Performance Butterfly Valves
  • External Solenoid Valves
  • Low Profile Design
  • Side Mounted Inlet and Outlet Valves

Description

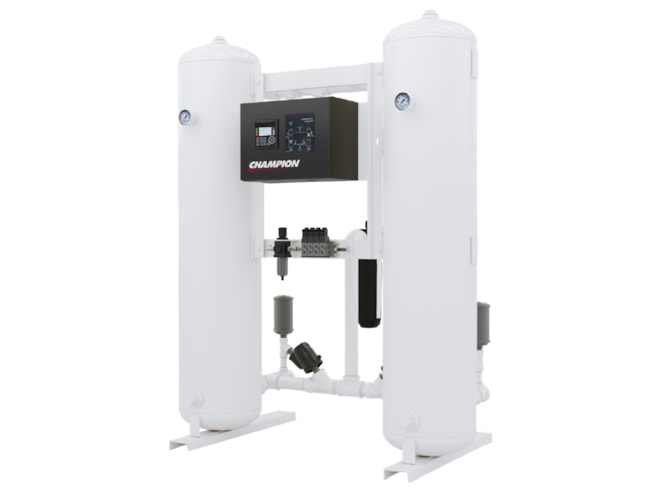

The Champion XCHL Series Heatless Desiccant Air Dryer features a low-profile design which allows for installation in areas with low overhead clearances. The rear-mounted inlet and outlet manifolds provide easy access to critical valves and components for easier, safer service and maintenance. The NEMA 4 enclosure is suitable for indoor and outdoor applications while protecting against dirt, dust, moisture, and ice.
