Overview

Features

  • 1500 to 1925 SCFM
  • Side Port Condensate Drain
  • 300 PSIG Maximum Pressure
  • 248°F Maximum Temperature
  • Aluminum Housing

Description

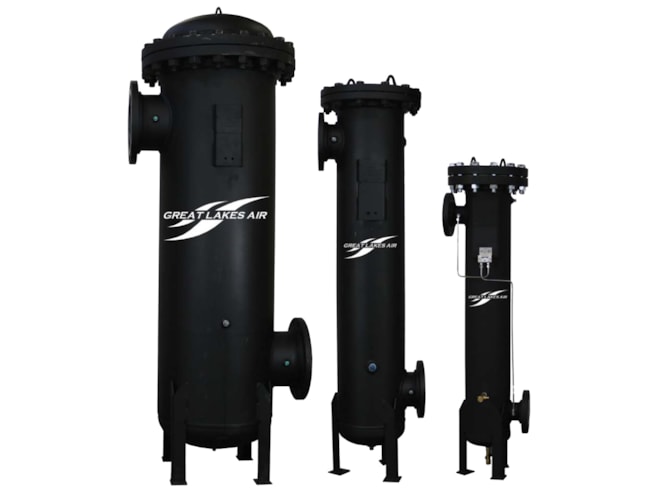

The Great Lakes Air GW Series Air Filter is available with 4 different filter elements.

Utility Coalescing Filtration:

  • Particle Removal Down to 1 Micron
  • Max. Oil Carryover 0.85 PPM w/w
  • Clean Dry Pressure Drop 0.75 PSID
  • Oil Saturated Pressure Drop 2.5 PSID
  • ISO 8573 (Class 2)

High Efficiency Coalescing Filtration:

  • Particle Removal Down to 0.01 Micron
  • Max. Oil Carryover 0.008 PPM w/w
  • Clean Dry Pressure Drop 1.5 PSID
  • Oil Saturated Pressure Drop 4.0 PSID
  • ISO 8573 (Class 1)

Particulate Filtration:

  • Particle removal down to 0.1 Micron
  • Clean Dry Pressure Drop 1 PSID
  • Saturated Pressure Drop 2.0 PSID
  • ISO 8573 (Class 3)

Mist Eliminator:

  • Particle removal down to 1 Micron
  • Clean Dry Pressure Drop 1.0 PSID
  • Outside/In Element Flow
  • ISO 8573 (Class 3)
